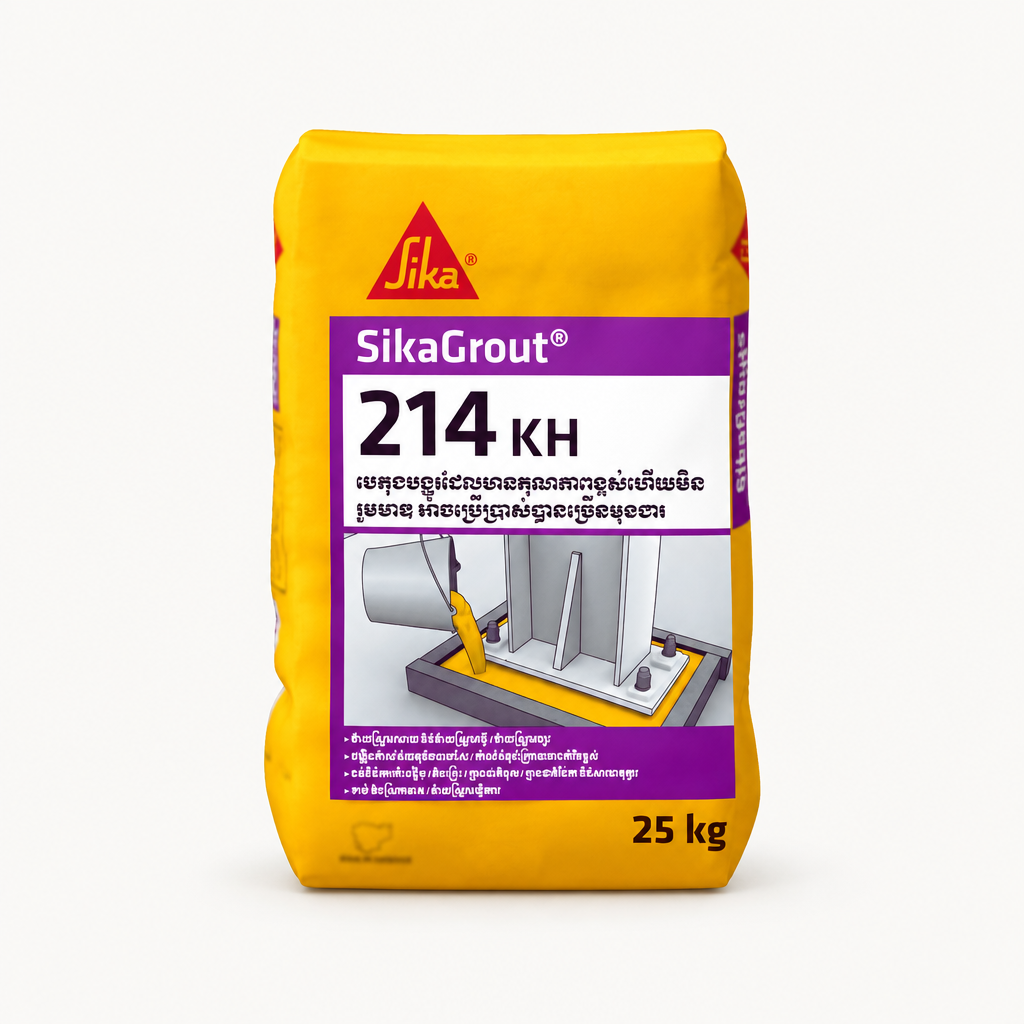

SikaGrout-214 KH Non-Shrink Cementitious Grout 25kg

SikaGrout-214 KH Non-Shrink Cementitious Grout 25kg

A pumpable, dual-shrinkage-compensated, self-levelling cementitious grout supplied ready for mixing with water. Extended working time suits local ambient temperatures, with good flow and rapid strength development for grouting machine foundations, baseplates and concrete structures.

Product Features

• Easy to mix and apply, with good flow and pumping properties.
• Rapid strength development and high ultimate strengths.
• Dual shrinkage compensation: gaseous expansion in the plastic stage and crystalline expansion in the hardened stage.
• Dense, non-shrink grout with impact resistance.
• Non-corrosive and chloride-free.
• Extended working time.
• Suitable for grouting clearances as low as 5mm.

Specifications

• Brand: Sika
• Model: SikaGrout-214 KH
• Type: Pumpable, shrinkage-compensated cementitious grout
• Packaging: 25kg bag
• Colour and form: Grey powder
• Density: Approximately 2.2 kg/L, depending on consistency and temperature
• Maximum grain size: 3.35mm
• Layer thickness: 5–50mm per pour for unextended grout
• Shelf life: 6 months from production
• Storage: Original unopened, undamaged sealed packaging in dry conditions at +5°C to +35°C, protected from sunlight, rain and water

Application

• Machine foundations and baseplate grouting.
• Columns in precast construction and bridge bearings.
• Concrete anchors and anchor bolts.
• Cavities, gaps, recesses and rail beds.
• Formwork repairs and deep honeycombs, including pre-packed grouting.

Use for grouting only. Select the appropriate consistency: pourable for baseplates; flowable or pourable for poured formwork repairs; flowable for pre-packed grouting; stiff for anchor bolts and special applications such as starter-bar anchoring.

How to Use

1. Prepare the grouting area and formwork for the intended application. Secure formwork firmly and keep it watertight. Organise the work to maintain continuous, uninterrupted grout flow.
2. Measure clean water for each 25kg bag: 3.75–4.0L for flowable consistency, 3.5–4.0L for pourable consistency or 3.0–3.4L for stiff consistency.
3. Place 70–80% of the measured water in a clean container. Gradually add the whole bag while continuously mixing. Add the remaining measured water and mix for 2–3 minutes with a slow-speed drill and paddle at approximately 500 rpm.
4. For large quantities, use a forced-action rotating-pan, paddle or trough mixer. Do not use free-fall mixers for the standard grout mix.
5. Stir lightly with a spatula for a few seconds to release trapped air, then pour immediately into prepared formwork. Maintain sufficient pressure head beneath baseplates and continuous flow across large areas.
6. For pumping, Sika lists heavy-duty diaphragm, screw-feed or piston pumps. Provide breather holes where needed to release trapped air; steel rods or chains may be used to assist grout flow.
7. For sections thicker than 50mm, follow Sika's aggregate-extension guidance using graded, silt-free 10mm aggregate, not exceeding 1 part aggregate to 1 part grout by weight. Sika permits conventional concrete mixers and pumps for these extended mixes. Confirm the project-specific mix and placement requirements.
8. For formwork repairs, leave formwork in place for at least 3 days. After removal, immediately cure exposed surfaces with Antisol-E or another approved curing method.
9. Clean tools and application equipment with water immediately after use. Hardened material requires mechanical removal.

What's in the Box

One 25kg bag of SikaGrout-214 KH. Mixing water, extension aggregate, curing products and application equipment are not listed as included.

Technical Information

• Air and substrate application temperatures: +10°C to +40°C.
• Compressive strength, ASTM C109, flowable: Greater than 25 N/mm² at 1 day, 45 N/mm² at 7 days and 60 N/mm² at 28 days.
• Compressive strength, ASTM C109, pourable: Greater than 30 N/mm² at 1 day, 50 N/mm² at 7 days and 65 N/mm² at 28 days.
• Flexural strength, EN 196-1, flowable: Approximately 7.0 N/mm² at 7 days and 7.5 N/mm² at 28 days.
• Flexural strength, EN 196-1, pourable: Approximately 7.5 N/mm² at 7 days and 8.0 N/mm² at 28 days.
• Expansion at 24 hours: 0.5–1.5%, ASTM C940.
• Flowability, modified ASTM C230: Approximately 280mm for flowable and 250mm for pourable consistency.
• Manufacturer's listed yield per bag: Approximately 15.1L mortar with 3.75L water for flowable consistency, or 14.9L with 3.5L water for pourable consistency.
• Confirm material quantities for large pours with Sika: the reference's bags-per-cubic-metre figures do not reconcile with its listed per-bag mortar yields.

Certificates

Sika lists testing for compatibility with drinking water under PSB report 57S030976-SLE-2. This is a reported compatibility test, not a blanket statement of current approval for every drinking-water installation. Confirm applicability and project requirements with Sika.
