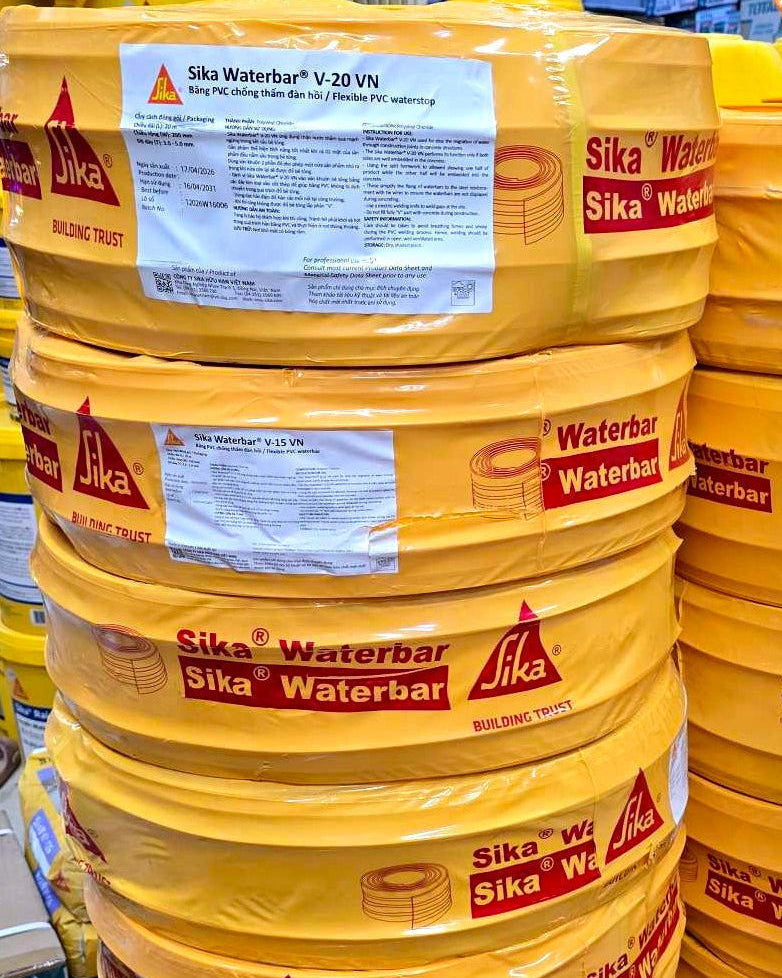

Stack of yellow Sika Waterbar V-20 VN buckets with visible branding.

3D model of a building foundation with steel reinforcement and yellow protective strip

Yellow conduit pipe against a concrete wall with rebar

Illustration of a concrete floor with a yellow metal strip and pipe.

Insulation of a wall with yellow insulation material and a red ladder in the background.

Yellow Sika Waterbar containers with installation images on a construction site background

PVC Waterstop O-Profile 20m Roll Sika Waterbar O VN

$128.00 USD

Options

PVC Waterstop O-Profile 20m Roll Sika Waterbar O VN

A flexible thermoplastic PVC waterstop designed to stop water migration through construction and expansion joints in concrete structures. Its multi-rib profile forms barriers to water movement, with sealing beginning as the concrete hardens.

Product Features

Flexible PVC profile for concrete construction and expansion joints.
Multi-rib design provides barriers to water migration.
Sealing begins when the surrounding concrete hardens.
Sections can be site-welded using suitable welding equipment.
Available here in O-15, O-20 and O-25 profiles, each in a 20m roll.

Specifications

Brand: Sika
Product range: Waterbar O VN
Material: Flexible thermoplastic PVC
Colour: Yellow
O-15: 150mm width, 20m roll
O-20: 200mm width, 20m roll
O-25: 250mm width, 20m roll
Width tolerance: ±5mm
Nominal thickness: 3.0–4.5mm, tolerance ±10%

Application

For water-retaining and below-ground concrete structures, including basements, reservoirs, swimming pools, sewage treatment plants, retaining walls, lift shafts, tunnels, culverts and service pits. Select the profile to suit the joint design.

How to Use

Position the waterstop centrally in the construction or expansion joint, aligning the profile with the joint plane.
Secure it to the reinforcement with suitable ties or clips to prevent displacement during pouring.
Place and compact concrete carefully on both sides, ensuring full encapsulation without voids or honeycombing.
Where connections are required, join the sections with suitable PVC waterstop welding equipment, ensuring clean, even connections.
Check positioning and concrete compaction during installation. Follow the current Sika installation instructions and project joint design.

What's in the Box

One 20m roll of Sika Waterbar O VN in the selected O-15, O-20 or O-25 profile. Welding equipment and fixing accessories are not listed as included.

Technical Information

Shore A hardness: greater than 70, ASTM D2240.
Tensile strength: 12 N/mm² (±5%), ASTM D412-06.
Elongation: 300% (±5%), ASTM D412-06.
Service temperature: −35°C to +55°C.
Permanent chemical resistance: seawater and sewage.
Temporary chemical resistance: diluted inorganic alkalis, mineral acids, mineral oils and fuels.
Shelf life: 5 years from production.
Storage: dry, shaded place protected from direct sunlight.
