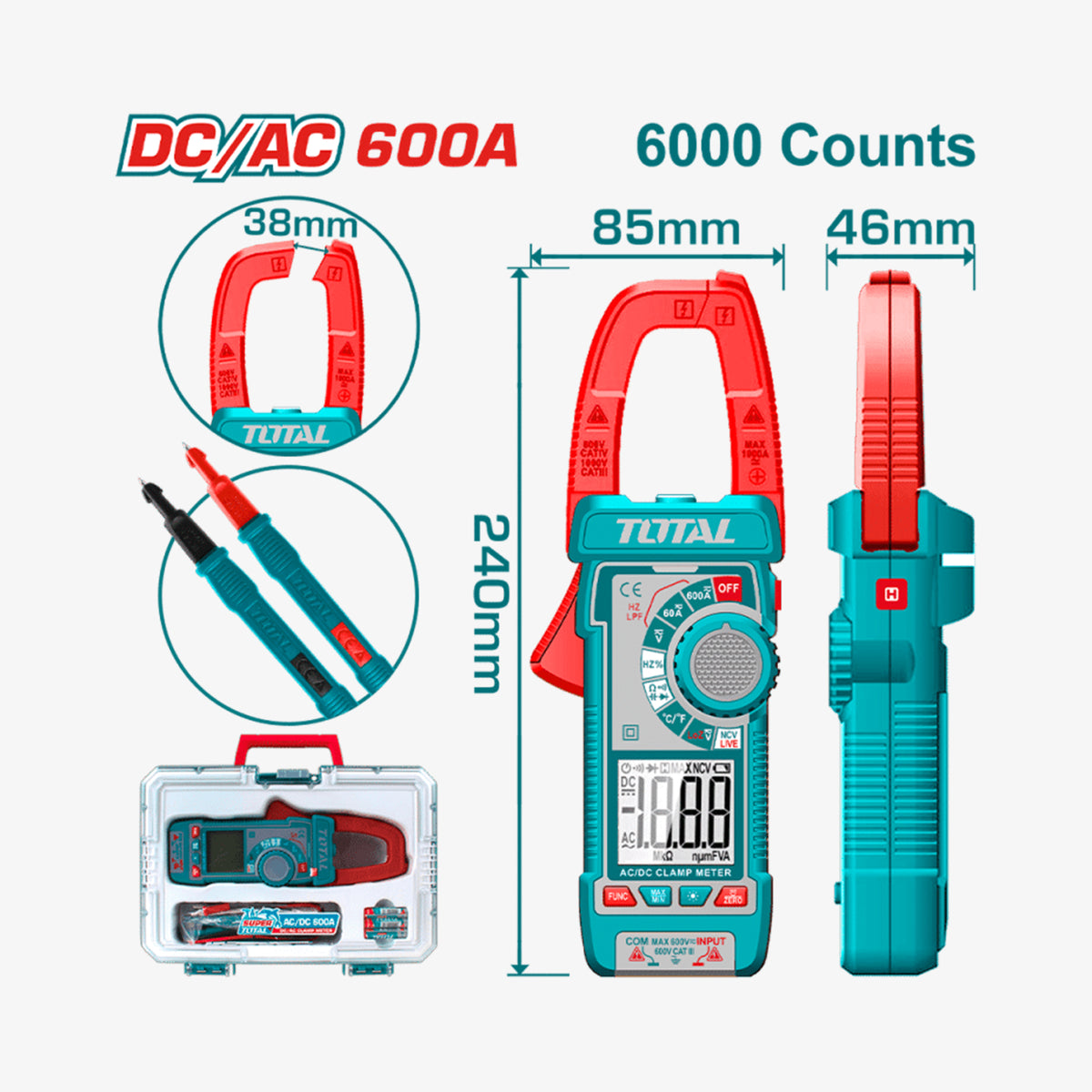

DC/AC Clamp Meter 600A 6000 Counts — TOTAL TMT766002
Advanced True RMS DC/AC clamp meter with 6000-count display and 600A measurement capacity. Features temperature, LPF (VFD), inrush current, phase function, and NCV — a full-featured tool for industrial electricians and HVAC professionals. Comes in a durable plastic carry case.
Specifications
| Function | Range |
|---|---|
| Display | 6000 Counts (True RMS) |
| DC/AC Current | 60A / 600A |
| DC/AC Voltage | 600mV / 6V / 60V / 600V |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance | 10nF / 100nF / 1000nF / 10μF / 1000μF / 10mF / 100mF |
| Frequency | 10Hz – 10MHz |
| Temperature | -40℃ – 1000℃ (-40℉ – 1832℉) |
| Jaw Opening | 38mm |
| NCV Detection | Yes |
| LPF (VFD) | Yes |
| Inrush Current | Yes |
| Phase Function | Yes |
| LoZ (Lowz) | Yes |
| Diode Test | Yes |
| Data Hold | Yes |
| Auto Power Off | Yes |
| Safety Rating | 600V CAT III / CAT IV |
| Dimensions | 240mm × 85mm × 46mm |
| Packaging | Plastic carry case |
What's in the Box
- 1× TOTAL DC/AC Clamp Meter (TMT766002)
- 1× Pair of test leads
- 3× LR03 AAA batteries
- 1× Plastic carry case
Materials & Care
- Housing: Impact-resistant ABS plastic with rubber overmold grip
- Do not exceed rated input voltage on any terminal
- Keep jaw contacts clean for accurate current readings
- Remove batteries if storing for extended periods to prevent leakage
